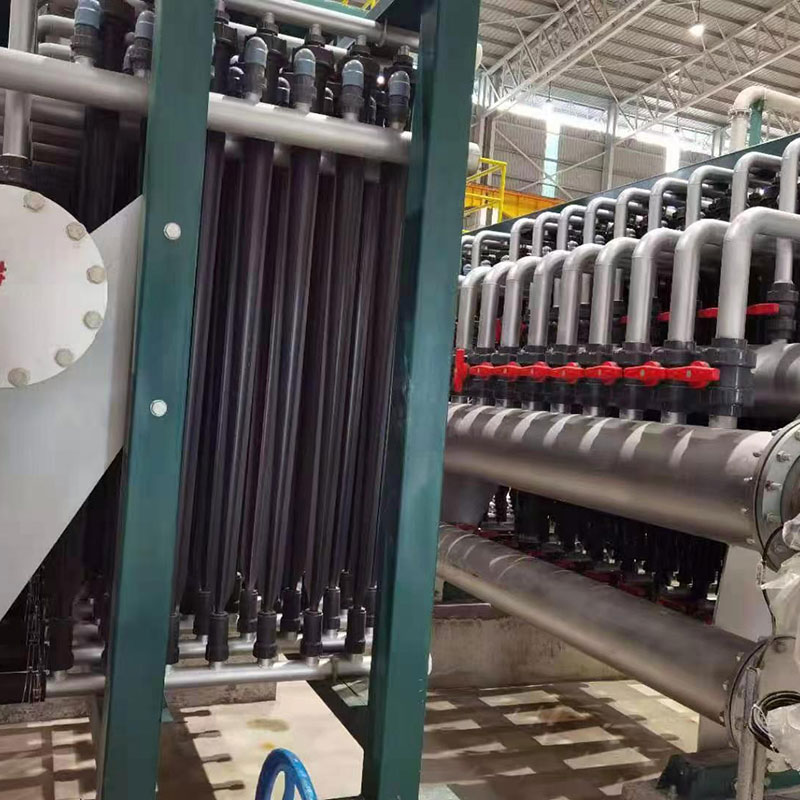

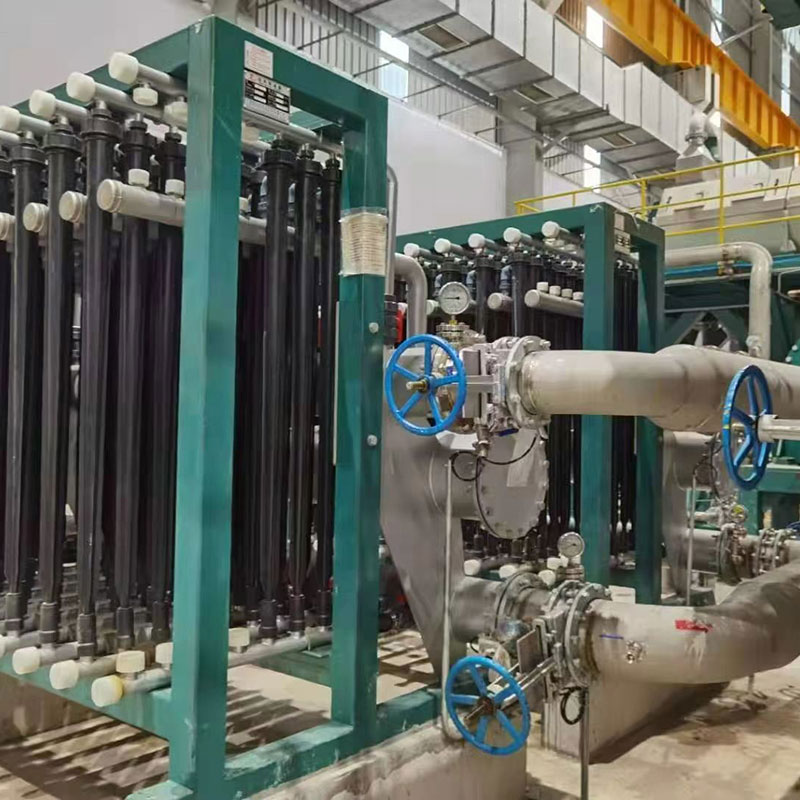

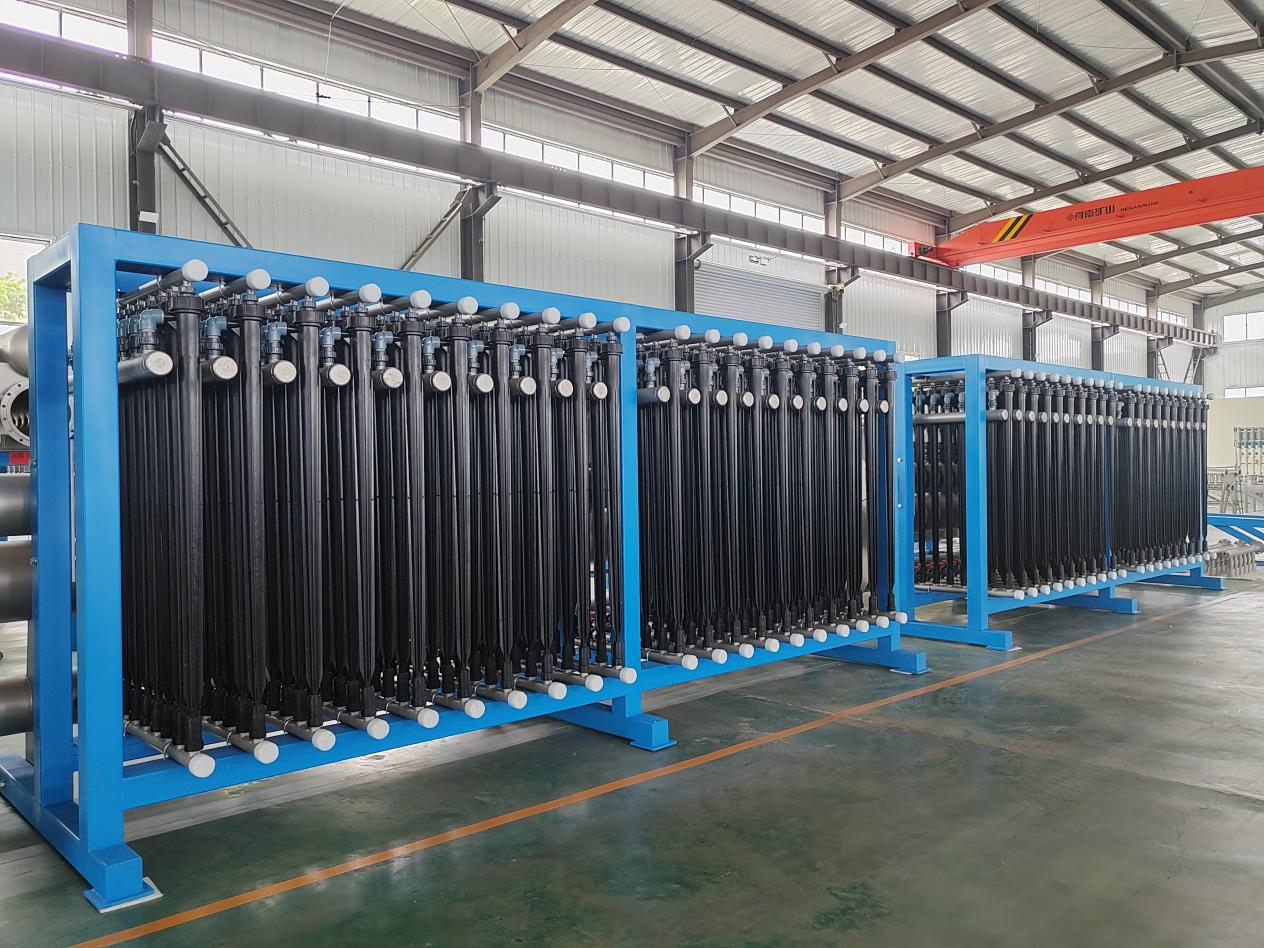

TNC-100 reverse light-weight centricleaner adopts the latest reverse purification technology to remove lightweight debris from all types of pulp and paper stock, such as wax, styrofoam, hot melt glues, latex, grease, and other low-density materials. It is featured longer stay time within a small diameter to maximize the separation of tiny contaminants, which is close to the specific gravity of the fiber itself. Feeding density is the same as in conventional lightweight cleaning system.

Main Technical Parameters

Feeding flow: 100 – 110 L/min

Feeding density: 0.6 – 1.0%

Accepts density: 0.8 – 0.9%

Feeding pressure: 0.48 – 0.52 MPa

Accepts pressure: 0.06 – 0.10 MPa

Volume reject removal rate: 40 – 45％（relative to feeding flow）

Required pulp tempt.: ≤ 60℃
