TMZC centricleaner

Contact Us

Categories: ,
Tags:

Description

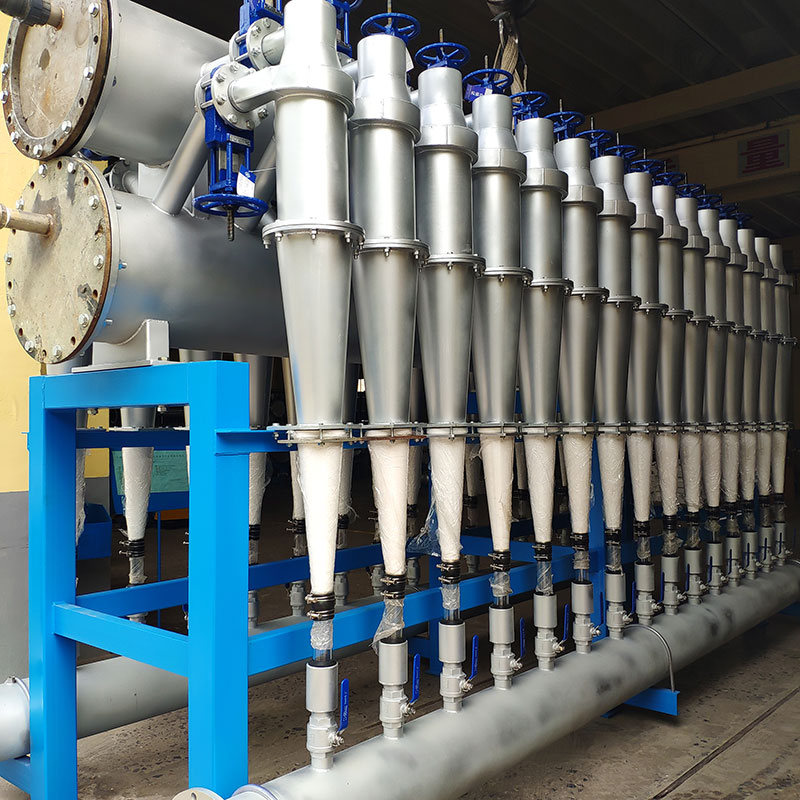

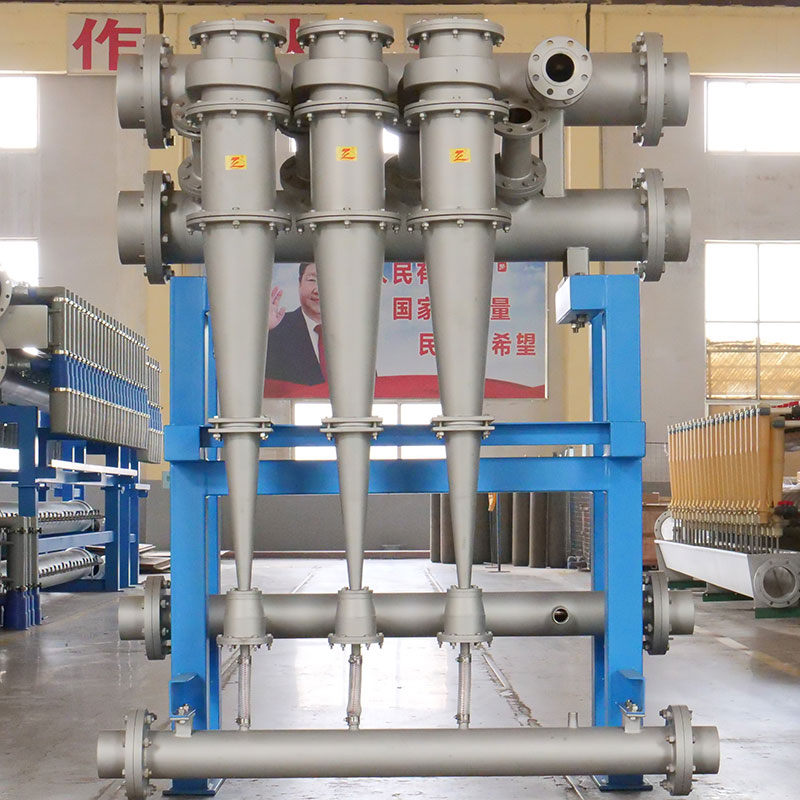

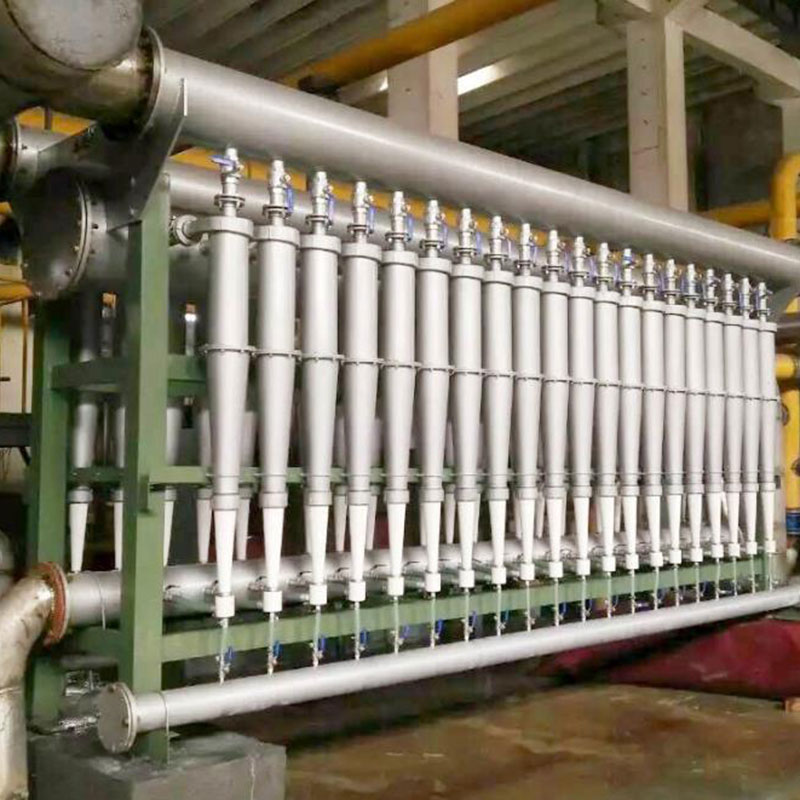

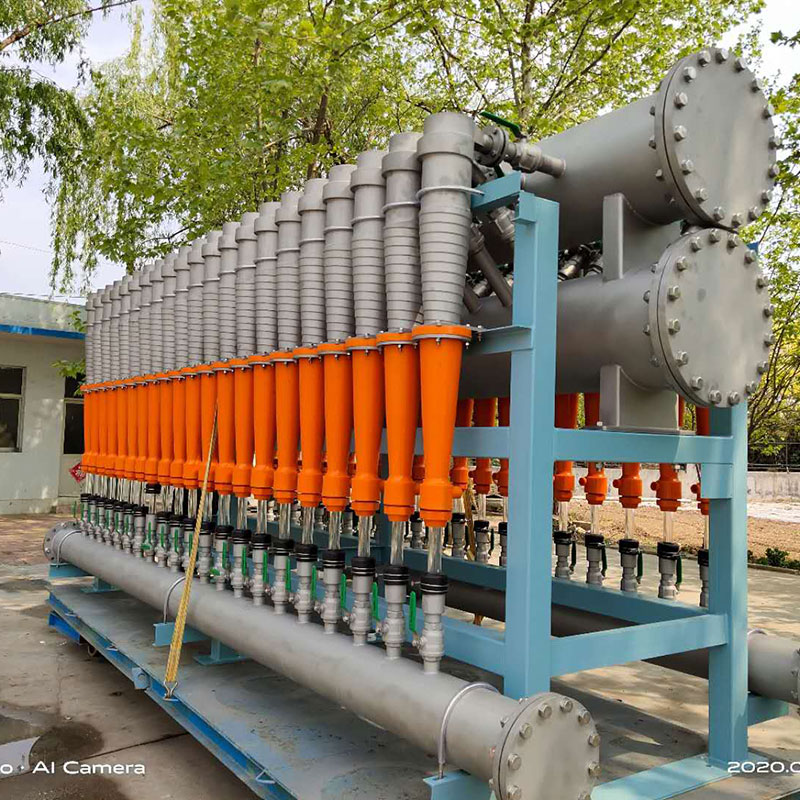

TMZC centricleaner is a patented product, which is designed by Tianli Machinery to solve impurity removal difficulties for paper mills based on the first generation product and the feedback from abroad and domestic customers. The configuration of this product is adjustable, according to user requirement, to separate heavy impurity solely or separate light and heavy impurity jointly, reducing user resources investment consequently. It is capable of separating heavy reject such as gravel, scrap iron, dope and other heavy mixtures, as well as light rejects such as plastic piece, bubble, air, printing ink, powder and etc. The flush water device installed at the bottom can make the centricleaner operate in the higher density pulp, thus reduce the investment.

Specification TMZC-500 TMZC-600 TMZC-800 TMZC-1000 TMZC-1200 TMZC-1800
Feeding Flow (L/min) 500 600 800 1000 1200 1800
Feeding Pressure (MPa) 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4
Pressure Drop

(MPa)

0.13-0.15 0.13-0.15 0.13-0.15 0.13-0.15 0.13-0.15 0.13-0.15
Feeding Density(%) 0-2.0 0-2.0 0-2.0 0-2.0 0-2.0 0-2.0
Min Accept Pressure

(MPa)

0.1 0.1 0.1 0.1 0.1 0.1
Max Tempt of Operating (℃) 80 80 80 80 80 80
