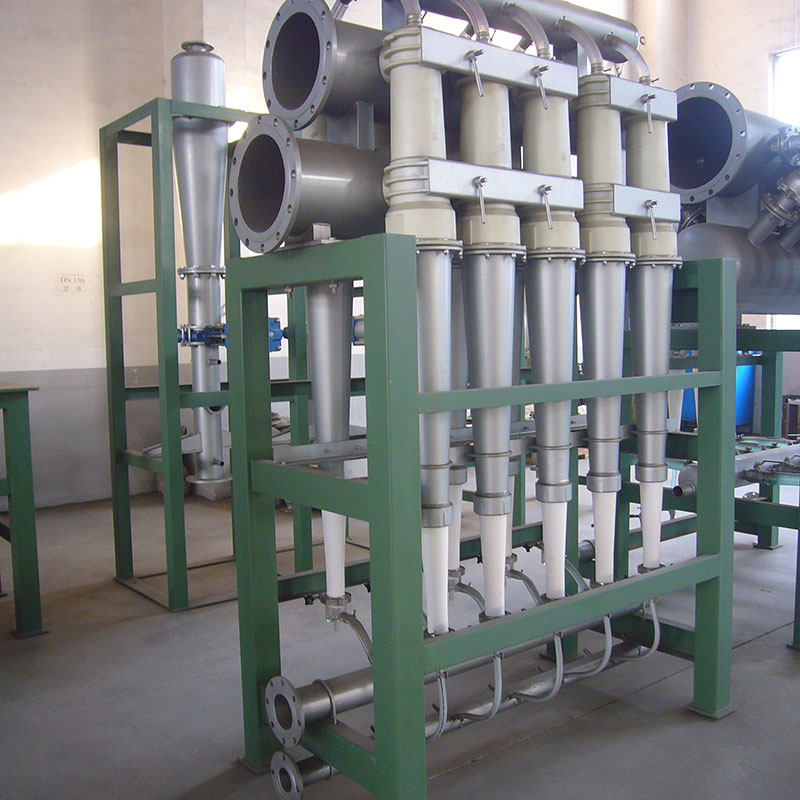

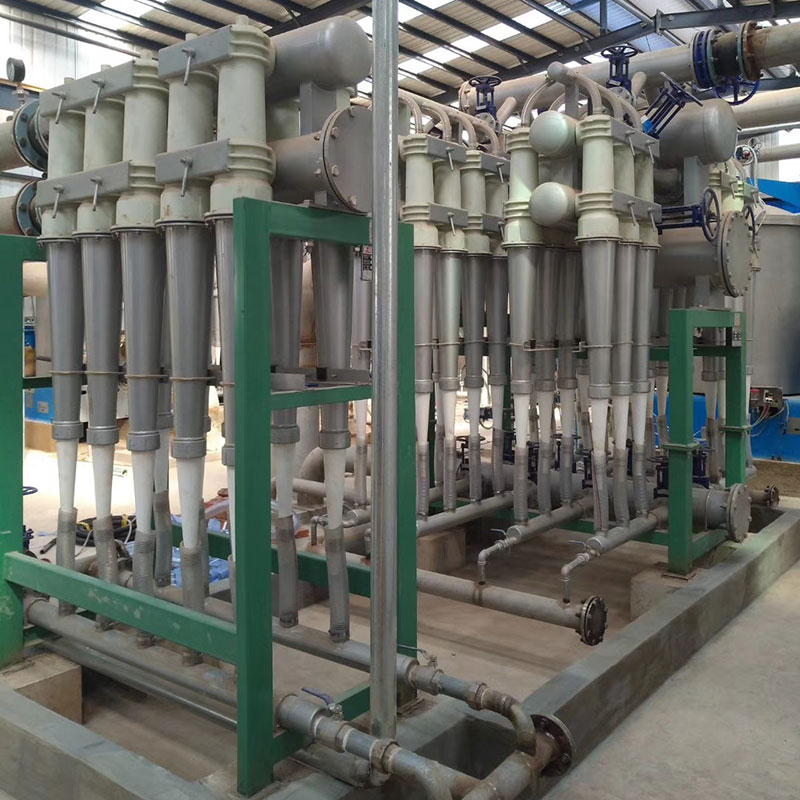

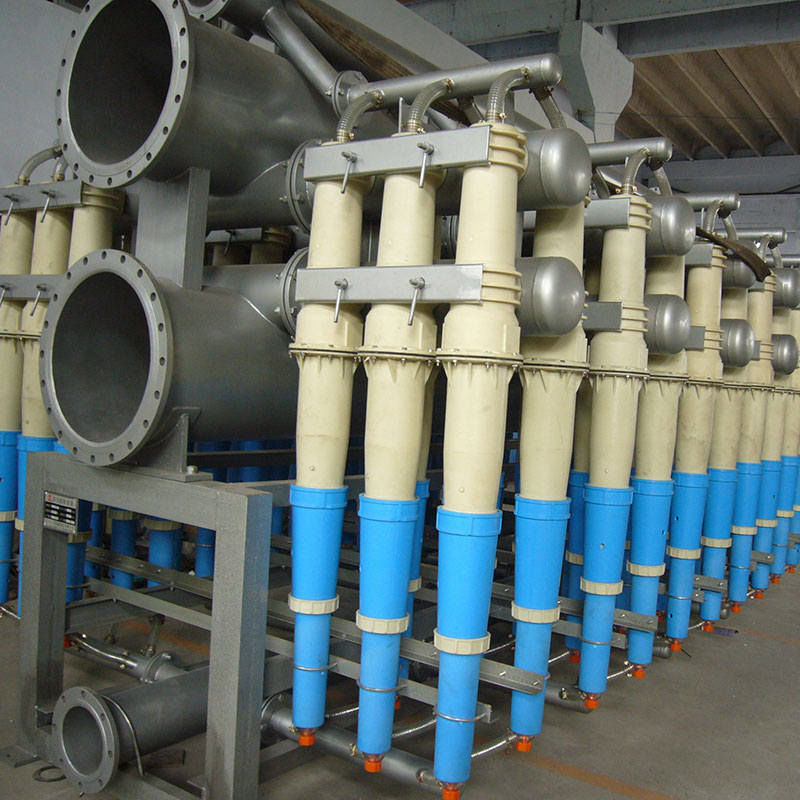

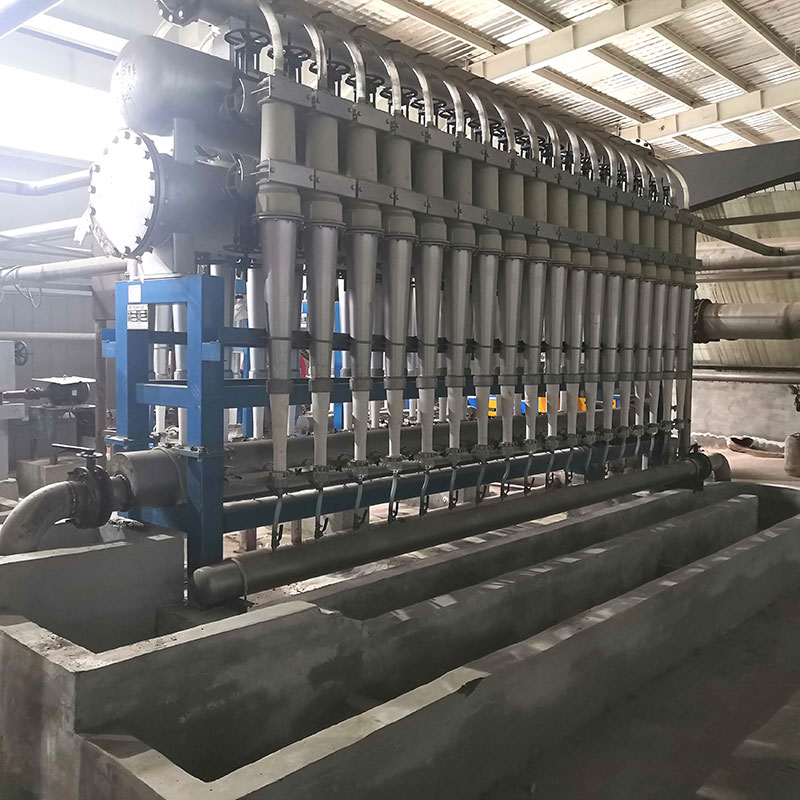

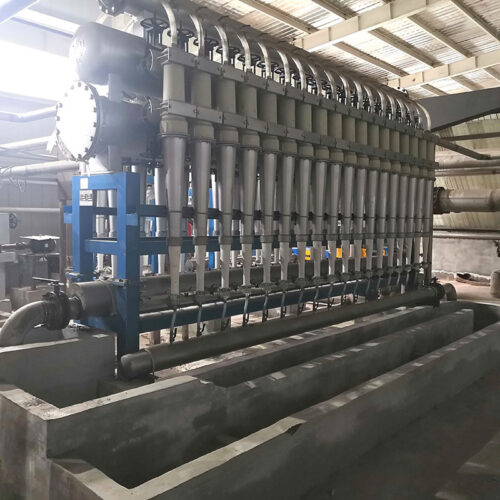

TMLC-700 multifunctional centricleaner is a modern type of multifunctional pulp cleaning equipment, which is designed by Tianli Machinery based on the domestic and abroad advanced technology. It uses centrifugal principle to remove various light and heavy impurities in pulp. It has a new feeding design, which is combined by the accelerated flow and long residence time. This design featured the centricleaner a high cleaning effect. It can be used in the pulp purification system to remove light and heavy impurities such as mixed waste, paraffin, adhesive, plastic sheet, foam, gas, sand and iron chips in the pulp.

Main Technical Parameters

Nominal Feeding Flow: 500 – 700 L/min

Nominal Feeding Pressure: 0.32- 0.35 MPa

Feeding Density: 0 – 2.0%

Volume Heavy Reject Removal Rate: 6 – 8% (relative to feeding flow)

Volume Light Reject Removal Rate: 10 – 12% (relative to feeding flow)
